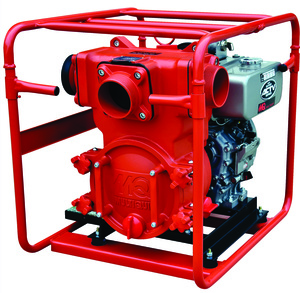

QP4TK
Powerful, dependable 4" industrial centrifugal trash pump that is the professional’s choice for the toughest dewatering applications. The signature Multiquip aluminum pump-end casings and high quality internal components provide the fastest priming times and trusted operational life. The pump is powered by an electric start, KUBOTA OC95-E4 diesel engine that provides EPA/CARB compliance design. This pump is the ideal choice for dewatering operations such as: excavations, flood waters, sewage by-pass, water transfer, and barge cleaning.
- Die-cast aluminum casings to promote fast priming times.
- Rugged, EPA/CARB Certified 9.5HP KUBOTA diesel engine.
- Electric start for operating convenience.
- Engineered for 475 GPM flow rate.
- Maximum Head - 85'.
- Pumps water with solid content as large as 2" in diameter.
- Dual 4" discharge ports for operational and application flexibility.
- Silicon/carbon mechanical seal for durability.
- Large clean-out chamber design for efficient.
- Tubular Steel frame for transportation and pump protection.
- #45 Ductile iron impeller and volute for abrasion resistance/long life.
- Shock mounted pump design to minimize operating harmonics.
- Optional UWK4 Wheel Kit available
| Suction x Discharge |
4 x 4 in 100 x 100 mm |
|
| Max. Water Capacity | 475 gpm | 2000 lpm |
| Max. Lift | 25 ft | 7.6 m |
| Max. Head | 85 ft | 26 m |
| Max. Pressure | 37.7 psi | 253 kPA |
| Max. Solid Intake | 2 in | 51 mm |
| Fuel Tank Capacity | 1.45 Gal | 5 L |
| Optional Wheel Kit | UWK4 | |
| Overall Length | 30.5 in | 775 mm |
| Overall Width | 24.5 in | 622 mm |
| Overall Height | 28.5 in | 724 mm |
| Operating Weight | 286 lb | 130 kg |
| Suction Hose - NPT Thread - Male/Female | Inside Diameter | Working Pressure | Wt. | |
| HS420 | Suction Hose, 20 feet - 4" | 4" | 60 | 44 (20) |
| HS425 | Suction Hose, 25 feet - 4" | 4" | 60 | 53 (24) |
| Suction Hose - NPT Thread w/Quick Couplers - Male/Female | ||||
| HSQ420 | Suction Hose, 20 feet - 4" Quick Coupler | 4" | 60 | 46 (20) |
| HSQ425 | Suction Hose, 25 feet - 4" Quick Coupler | 4" | 60 | 55 (25) |
| Discharge Hose - NPT Thread w/ Standard Fittings | Inside Diameter | Working Pressure | Wt. | |
| HD450 | Discharge Hose, 50 feet - 4" | 4" | 60 | 57 (26) |
| Discharge Hose - NPT Thread with Quick Couplers | ||||
| HDQ450 | Discharge Hose, 50 feet - 4" Quick Coupler | 4" | 60 | 61 (28) |
| Couplers | Wt. | |||
| A400A | Coupling, 4" NPT to Q-Disconnect, 4" | 1 (.04) | ||
| Wheel Kit | Wt. | |||
| UWK4 | Universal Wheel Kit ~ 4" Framed Pumps | 22 (10) | ||
Notice: Features and equipment specifications are subject to change without notice.
