QP3TH

QP3TH

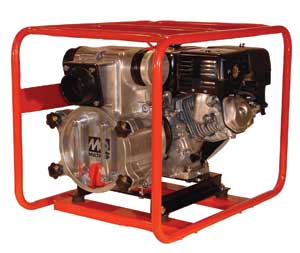

3" Suction, Trash Pump, 396 GPM, 95 ft. MAX Head; Honda GX-240
This is Multiquip's most popular pump model. The QP3TH is perfect for many pumping applications from dewatering to water tank and water truck use. Dual discharge ports increase the productivity and practicality of this gasoline-powered trash pump.



  • Features to tackle the demanding requirements of the Pro Contractors.
  • Trusted 7.9HP Honda GX240 gasoline engine.
  • Automatic low oil shutdown for the engine is a standard feature.
  • Pumps water with solid content as large as 1.5-inch (37 mm) in diameter.
  • Maximum lift of 25 feet (7.6 meters).
  • Can pump up to 396 gallons (1,500 liters) per minute.
  • Dual 3-inch discharge ports to adapt to different applications.
  • Carbon/silicon mechanical seal for durability.
  • Large cleanout cover removes in seconds without tools.
  • Tubular Steel frame for transportation and pump protection.
  • Cast Iron impeller and volute for abrasion resistance/long life.
  • Aluminum body with cast-iron fittings.




Unit Specifications
Suction x Discharge 3 x 3 in
76 x 76 mm
Max. Water Capacity 396 gpm 1500 lpm
Max. Lift 25 ft 7.6 m
Max. Head 95 ft 29 m
Max. Pressure 41.1 psi 283 kPA
Max. Solid Intake 1.5 in 37 mm
Fuel Tank Capacity 1.58 Gal 6 L
Optional Wheel Kit UWKB
Dimensions & Weights
Overall Length 28.7 in 729 mm
Overall Width 21.7 in 551 mm
Overall Height 23 in 584 mm
Operating Weight 142 lb 64 kg
Notice: Features and equipment specifications are subject to change without notice.
