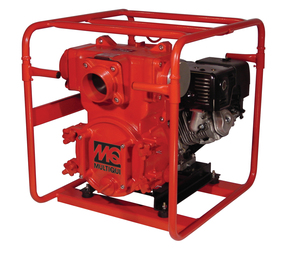

QP4TH

QP4TH

4" Suction, Trash Pump, 555 GPM, 92 ft. MAX Head; Honda GX340
The QP4TH is the perfect choice for larger pumping applications. Powered by an easy-start Honda 10.7-HP engine it is the preferred choice for dependable dewatering. Four handles on the frame means easy handling. An optional wheel kit is also available.



  • Features to tackle the toughest requirements of the Pro Contractors.
  • Trusted 10.7HP Honda GX340 gasoline engine.
  • Automatic low oil shutdown for the engine is a standard feature.
  • Pumps water with solid content as large as 2-inch (51 mm) in diameter.
  • Maximum Head – 92 ft (28 meters).
  • Can pump up to 555 gallons (2,100 liters) per minute.
  • Dual 4-inch discharge ports to adapt to different applications.
  • Carbon/silicon mechanical seal for durability.
  • Large cleanout cover removes in seconds without tools.
  • Tubular Steel frame for transportation and pump protection.
  • Cast Iron impeller and volute for abrasion resistance/long life.
  • Aluminum body with cast-iron fittings.




Unit Specifications
Suction x Discharge 4 x 4 in
100 x 100 mm
Max. Water Capacity 555 gpm 2100 lpm
Max. Lift 25 ft 7.6 m
Max. Head 92 ft 28 m
Max. Pressure 40 psi 275 kPA
Max. Solid Intake 2 in 51 mm
Fuel Tank Capacity 1.65 Gal 6.5 L
Optional Wheel Kit UWK4
Dimensions & Weights
Overall Length 30.1 in 765 mm
Overall Width 27.3 in 693 mm
Overall Height 30.7 in 780 mm
Operating Weight 216 lb 98 kg
Notice: Features and equipment specifications are subject to change without notice.
