GA25HR

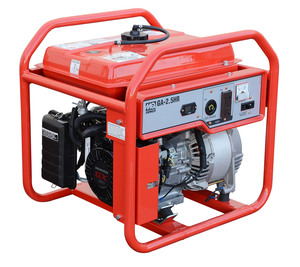

GA25HR

2.5kW output, 120V, Honda
The GA25HR model is ideal for small tool applications and with its high quality construction; this unit is tough enough for any jobsite condition.
  • Lightweight and compact design for easy transport
  • 100% copper windings for maximum conductivity
  • Alternator design eliminates maintenance by removing brushes and slip rings
  • Hour meter for proper service intervals and usage information
  • Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
  • Runs for six hours on a full tank at full load
  • Powered by a Honda GX160 engine with low-oil shutdown




Unit Specifications
Alternator Design Brushless
Frequency 60 hz
Phase Single Phase
Voltage 120 V
Sound level at 30 ft 70 dBA
Fuel Tank Capacity 3.2 gal 12 L
Power Generation
Maximum Continuous
Watts 2500 W 2200 W
Amps at 120V 20.8 A 18.3 A
Receptacles & Circuit Breakers
Main Circuit Breaker 20 A
Number of Poles 1
1 Receptacle of Each: 5-20R 125V GFCI 20A
L5-20R 125V T-Lock 20A
Dimensions & Weights
Overall Length 20.9 in 530 mm
Overall Width 17.7 in 450 mm
Overall Height 20.1 in 510 mm
Shipping Dimensions 20.9 x 17.7 x 20.1 in
530 x 450 x 510 mm
Operating Weight 132 lb 60 kg
Shipping Weight 110 lb 50 kg
Engine Specifications
Engine Make/Model Honda GX-160
Start Method Recoil
Engine Power 5.5 HP 4.1 kW
Engine RPM 3600
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
