MQ62TKT

MQ62TKT

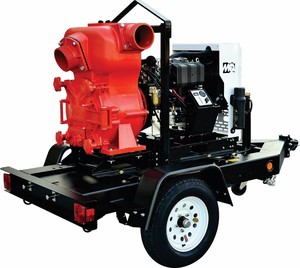

6" Trash Pump, Trailer mount, 1,190 GPM - KOHLER KDW 1404 Tier 4 Final diesel engine.

Industrial 6" wet priming de-watering trash pump provides the proven performance you have come to expect from Multiquip. The pump is powered by trusted and efficient KOHLER KDW 1404 Tier 4 Final diesel engine. The MQ62TKT provides a DOT/NHTSA qualified trailer with 28 GAL fuel tank.

  • Pumps up to 1,190 gallons per minute.
  • Maximum head rated 111 feet.
  • Powered by KOHLER Tier 4 Final 4-cylinder, diesel engine.
  • Engine incorporates a water/fuel separation filtration system.
  • Full featured, shock mounted LOFA EL240 Control Panel.
  • Industrial DOT/NHTSA approved single-axle trailer.
  • 28-gallon fuel cell.
  • Pump-end supplies large cleanout cover
  • 6” Male NPT Threaded Suction/Discharge ports.
  • Wear-resistant ductile cast iron volute and impeller assembly.
  • Stainless steel wear plate.
  • Integrated lifting bale.
  • Abrasion-resistant, oil lubricated tungsten/carbide seal system.
  • Pumps solids up to 3 inches in diameter.
  • Approximate running time of 15 hours.




Unit Specifications
Suction x Discharge 6 x 6 in
152 x 152 mm
Max. Water Capacity 1190 gpm 4522 lpm
Max. Lift 25 ft 7.6 m
Max. Head 111 ft 34 m
Max. Pressure 48.9 psi 331 kPA
Max. Solid Intake 3 in 76 mm
Fuel Tank Capacity 28 Gal 106 L
Notes: Trailer Mounted
Dimensions & Weights
Overall Length 101 in 2565 mm
Overall Width 56 in 1422 mm
Overall Height 68 in 11727 mm
Operating Weight 1700 lb 77 kg
Notice: Features and equipment specifications are subject to change without notice.
