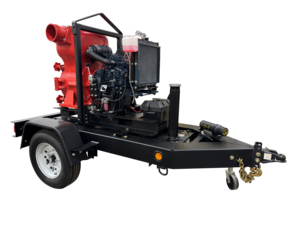

MQ6TKT
Industrial 6" wet priming de-watering trash pump provides the proven performance you have come to expect from Multiquip. The pump is powered by trusted and efficient KUBOTA D1105 Tier 4 Final diesel engine. The MQ6TKT provides a DOT/NHTSA qualified trailer with 28 gallon fuel tank.
- Pumps up to 1,110 gallons per minute.
- Maximum head rated 115 feet.
- Powered by KUBOTA Tier 4 Final 4-cylinder, diesel engine.
- Engine incorporates a water/fuel separation filtration system.
- Full featured, MC704HP controller monitors engine functions such as preheat, alternator charge failure, low oil pressure and high coolant temperature.
- Industrial DOT/NHTSA approved single-axle trailer.
- 28-gallon fuel cell.
- Pump-end supplies large cleanout cover
- 6” Male NPT Threaded Suction/Discharge ports.
- Wear-resistant ductile cast iron volute and impeller assembly.
- Stainless steel wear plate.
- Integrated lifting bale.
- Abrasion-resistant, oil lubricated tungsten/carbide seal system.
- Pumps solids up to 3 inches in diameter.
- Approximate running time of 20 hours.
| Suction x Discharge |
6 x 6 in 152 x 152 mm |
|
| Max. Water Capacity | 1110 gpm | 4202 lpm |
| Max. Lift | 25 ft | 7.6 m |
| Max. Head | 115 ft | 35 m |
| Max. Pressure | 49.8 psi | 343 kPA |
| Max. Solid Intake | 3 in | 76 mm |
| Fuel Tank Capacity | 28 Gal | 106 L |
| Notes: Trailer Mounted | ||
| Overall Length | 105.6 in | 2682 mm |
| Overall Width | 55 in | 1397 mm |
| Overall Height | 69 in | 1752 mm |
| Operating Weight | 1805 lb | 819 kg |
Notice: Features and equipment specifications are subject to change without notice.
