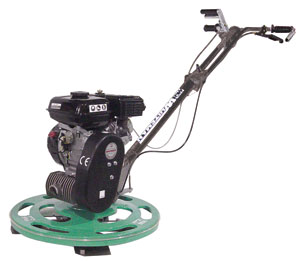

CA4HM

CA4HM

4-blade, 24", Honda GX160, 4.8 HP, Min 70-130 Max RPM blade speed, manual clutch
Folding QuickPitch handle included with CA4HM

This compact design is ideal for finishing edges and around risers. The powerful Honda GX 160 engine, manual clutch and folding Quick-Pitch handle make this the professional finishers choice.

Note: Units prior to serial number RC0158421 came with a GX120 Honda engine. This engine is NLA from Honda in the MQ configuration .

  • Only 24 inches (610 mm) in diameter making it great for finishing tight spaces and around obstructions
  • QuickPitch handle provides simple and fast blade control
  • Folding handle design simplifies transport and reduces storage space
  • Rotating guard ring allows finishing tight to the wall without marking or marring
  • Center mount lifting bale is standard




Unit Specifications
Clutch Type Manual
No. of Blades 4
Ring Diameter 24 in 609.6 mm
Rotor Speed 70-130 RPM
Handle Options Quick-Pitch Handle Included
Dimensions & Weights
Overall Length 61 in 1555 mm
Overall Width 24 in 610 mm
Overall Height 36.25 in 921 mm
Operating Weight 145 lb 65.7 kg
Shipping Weight 184 lb 83.4 kg
Engine Specifications
Engine Make/Model
Start Method Recoil
Engine Power 4.8 HP 3.6 kW
Engine RPM 3600
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
