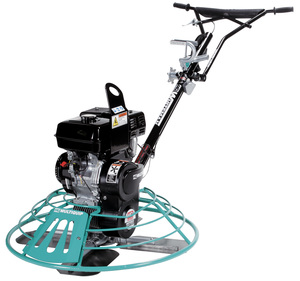

J36H90H
· 36-inch (915 mm) guard ring diameter
· Rotor speed of 90-155 RM for high speed finishing applications; optional low speed panning kit available (60-130 RPM)
· Trowel covered by 1-year limited warranty
· Front access panel provides quick access to trowel arms and blades
· Center mount lifting bale included
· Spider and thrust collar assembly design simplifies routine maintenance
· Gearbox features top quality components & large oil capacity for years of trouble-free performance
· Optimally balanced for smooth finishing
· Handles available with either QuickPitch or Standard (knob type) pitch control
Watch this video to learn more about operating and maintaining your MQ Whiteman Walk Behind Power Trowel, including important safety guidelines, a pre-operation checklist, and operating tips.
Watch VideoClutch Type | Centrifugal | |
No. of Blades | 4 | |
Ring Diameter | 36 in | 914.4 mm |
Rotor Speed | 90-155 RPM | |
Handle Options | SXH QXH |
Overall Length | 70 in | 1789 mm |
Overall Width | 36 in | 915 mm |
Overall Height | 41 in | 1044 mm |
Operating Weight | 209 lb | 94.8 kg |
Shipping Weight | 207 lb | 93.8 kg |
Recommended Blades for 36" J series WBT's
- C844 BLADE COMBO 8 x 14 36 TROWEL
-
C844L BLADE COMBO LIGHT 8 x 14 36 TROWEL -
F900 BLADE FINISH 6 x 14 36 TROWEL -
RC814 BLADE COMBO REV 8 x 14 6 ROT WBT -
CL954F BLADE FLOAT 10 x 14 36 TROWEL -
QC1871 BLADE COMBO 8 x 14 QC 36 TROWEL -
QF1872 BLADE FINISH QC 6 x 14 36 TROWEL -
QF10872 BLADE FINISH ENDURO QC 6 x 14 36 TROWEL -
QC10871 BLADE COMBO ENDURO QC 8 x 14 36 TROWEL
Quick Change Mounting Bar/Snap for QC Blades
-
QB1857 BAR MOUNTING QC BLADE 36 TROWEL -
QS1869 BLADE SNAP PIN FOR QC BLADE(2 PER BLADE)
Poly Blades
-
F900PL BLADE FINISH POLY 6 X 14 36 TROWEL
Recommended Float Pans for 36" J series WBT's
-
2870 PAN FLOAT 36 4 BLADE FLAT WBT -
11032 PAN FLOAT 36 4 BLADE SF WBT/ROT
Accessories
-
LOWSPEEDKITJB LOW SPEED KIT JB FINISHER (SEE BDT)
