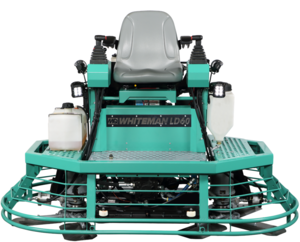

LD6SL
The LD6SL is the only fully hydrostatic 6' ride-on trowels on the market today. Electro-proportional servo controlled pump and high torque drive motors enable these models to achieve performance levels unmatched in the industry by any 6' ride on trowel on the market today. Proportional hydraulic steering enhances maneuverability while the all new walk around frame design simplifies maintenance and offers easy access to all serviceable components.
Drive System
- 23 HP Vanguard air cooled V twin engine offers the quality, performance and dependability contractors demand
- Poclain and Parker hydraulic components deliver the efficiency and performance required for panning and finishing
- Fully hydrostatic system offers years of trouble free service
Design
- Proportional hydraulic steering offers quick response with minimal operator effort
- Electric linear acuators control pitch for precision blade pitch control
- Rebuildable spider assemblies reduce maintenance costs
- Non-overlapping design allows the versatility of using blades or pans on the job site
- Standard 36" pans and blade accessories are available
- Improved stability-engine placement lowers overall center of gravity and reduces frame roll
Operating Controls
- Manual hand throttle and pump stroke controls allow operator to set precise engine and rotor RPM
- Ergonomic controls enhance productivity and reduce operator fatigue
Factory Accessories Installed
- Lighting kit with 6 LED lights, wiring harnesses and required hardware (LD6LK)
- 3 gallon retardant spray system includes tank, spray buttons and required hardware (LD6SK)
Optional Accessory Kits
- Edger kit coverts the LD6 into an edging trowel (LD6EK)
- EZ mover options include: EMR2, EMR3, LD6EZM
Engine | 23 HP Vanguard air cooled V twin | |
Rotor RPM | 0-140 | |
Path Width | 75 in | 1905 mm |
Fuel Tank Capacity | 4 gal | 15.1 L |
Run Time | 1.45 gal/hr |
Overall Length | 36 in | 914 mm |
Overall Width | 75 in | 1905 mm |
Overall Height | 55 in | 1397 mm |
Shipping Dimensions |
41 x 79 x 50 in 1041 x 2006 x 1270 mm |
|
Operating Weight | 889 lb | 403 kg |
Shipping Weight | 1000 lb | 453 kg |
Recommended Blades for 6' HYD ROT's
-
C10844 BLADE COMBO ENDURO 8 x 14 36 TROWEL -
F900 BLADE FINISH 6 x 14 36 TROWEL -
F10900 BLADE FINISH ENDURO 6 x 14 36 TROWEL -
RC814 BLADE COMBO REV 8 x 14 6 ROT WBT
Poly Blades
-
F900PL BLADE FINISH POLY 6 X 14 36 TROWEL
Recommended Float Pans for 6' HYD ROT's
-
2870 PAN FLOAT 36 4 BLADE FLAT WBT -
11032 PAN FLOAT 36 4 BLADE SF WBT/ROT
Notice: Features and equipment specifications are subject to change without notice.
